Single cabinet

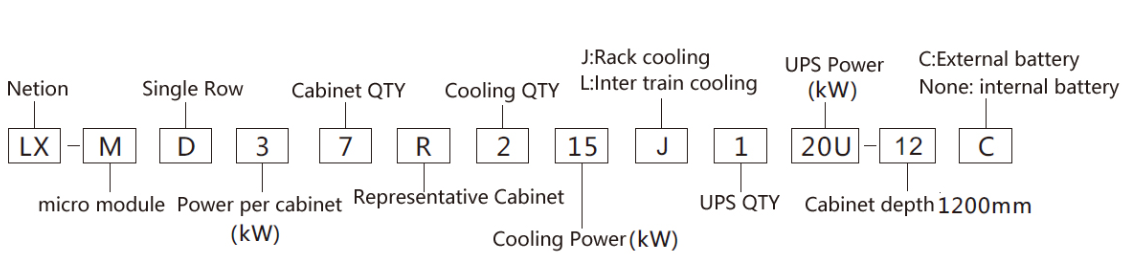

Lx-MD31R103J103U-12

1

0

0

Internal

12V9Ah×6

3kVA×1

3.5kW×1/ Rack

1

1+1

Lx-MD32R105J106U-12

1

1

0

Internal

12V9Ah×16

6kVA×1

5kW×1/ Rack

2

1+2

Lx-MD33R107J110U-12

1

2

0

Internal

12V9Ah×16

10kVAx1

7.5kW×1/ Rack

3

1+3

Lx-MD34R112J120U-12

1

3

0

Internal

12V40Ah×16

20kVA×1

12.5kW×1/ Rack

4

1+4

Lx-MD35R112L120U-12

1

4

0

Internal

12V65Ah×16

20kVAx1

12.5kW×1/ Inter column

6

1+4

Lx-MD35R112L120U-12C

1

4

1

External

12V10OAh×16

20kVA×1

12.5kW×1/ Inter column

7

1+5

Lx-MD36R115L120U-12

1

5

1

Internal

12V100Ah×16

20kVAx1

15kW×1/ Inter column

8

1+5

Lx-MD36R115L120U-12C

1

5

0

External

12V100Ah×16

20kVA×1

15kW×1/ Inter column

7

1+6

Lx-MD37R212L130U-12

1

6

2

Internal

12V100Ah×32

30kVA×1

12.5kW×2/ Inter column

11

1+6

Lx-MD37R212L130U-12C

1

6

0

External

12V10OAh×32

30kVA×1

12.5kW×2/ Inter column

9

1+7

Lx-MD38R212L130U-12

1

1

2

Internal

12V10OAh×32

30kVA×1

12.5kW×2/ Inter column

12

1+7

Lx-MD38R212L130U-12C

1

7

0

External

12V100Ah×32

30kVA×1

12.5kW×2/ Inter column

10

Single cabinet

1+1

1+2

1+3

1+4

1+5

1+6

1+7

Overall parameters

Power supply system

220V,50Hz，1Ph+N+PE

380V,50Hz,3Ph+N+PE

Working Temperature

0~40℃

Humidity range

5~95%

Altitude

0~4000m(Reduce ? capacity for use ? above 1000m)

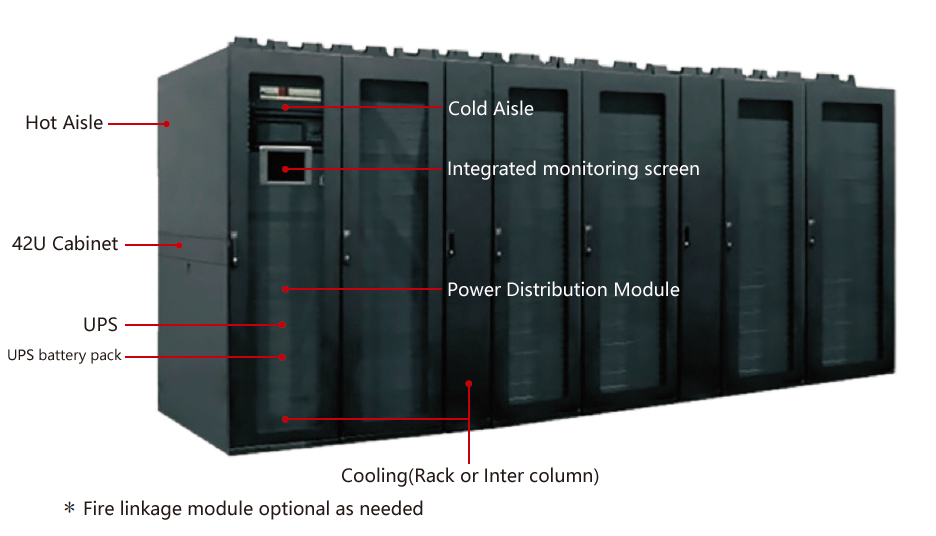

Cabinet System

Cabinet dimension:W×D×H(mm)

600×1200×2000

Cabinet composition

Control ? cabinet+IT cabinet+air ? conditioning cabinet+battery cabinet (optional)

Cold and hot channels

Cold ? and hot channels, double ? closed, cold channels, single closed

Device available space

Free space

42U×(N-1), the specific available space depends on the configuration.

Distribution system

System input

Input main switch

40A/2P

63A/2P

100A/2P

80A/3P

125A/3P

System output

Output circuit

Configure according to user requirements

UPS

Capacity

3kVA

6kVA

10kVA

20kVA

30kVA

Configuration

Single UPS

Single/DualUPS

Power Factor

0.8

0.9

Efficiency

93% above

PDU

Installation method

Vertical installation

Type

National standard

Configuration

32A，GB16×10A+4×16A

Battery Pack

Capacity

9Ah

QTY

0~4

Backup

Backup mode

Battery pack/rack/cabinet

Battery cabinet

Backup time

15 minutes to 4 hours, configured according ? to user requirements

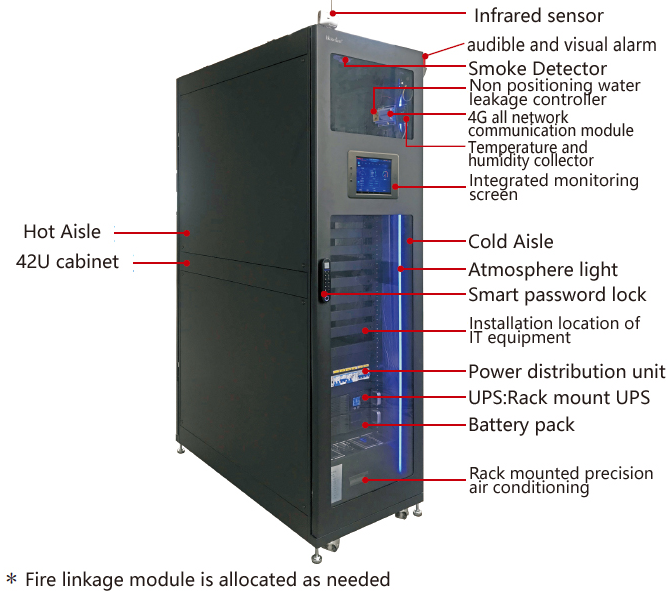

Dynamic loop system

Integrated monitoring machine

10寸 touch screen

SMS alarm

Optional

Atmosphere light

standard configuration

Audible and Visual Alarm

standard configuration

Water immersion

standard configuration

Temperature sensor

standard configuration

Door contact

standard configuration

Smoke Detector

standard configuration

infrared

Optional

Cooling?

system

Cooling

Refrigeration capacity

3.5kW×1

5kWx1

7.5kW×1

12.5kW×1

12.5kW×1

15kw×1

12.5kW×2

12.5kW×2

Classification

Rack mounted variable frequency

Inter column frequency conversion

Work Voltage

220V

380V

Eemergency ventilation

Exhaust air volume(myh)

720

1440

2160

2880

3600

4320

5040

5760

Work Voltage

220v

Dimension/GW

Package dimension:?

W×D×H(mm)

734×1360×2200(unit)

NW

140kg(Control Cabinet），100kg(IT Cabinet)
